Production of Geomaterials Panel
used glass as a raw material

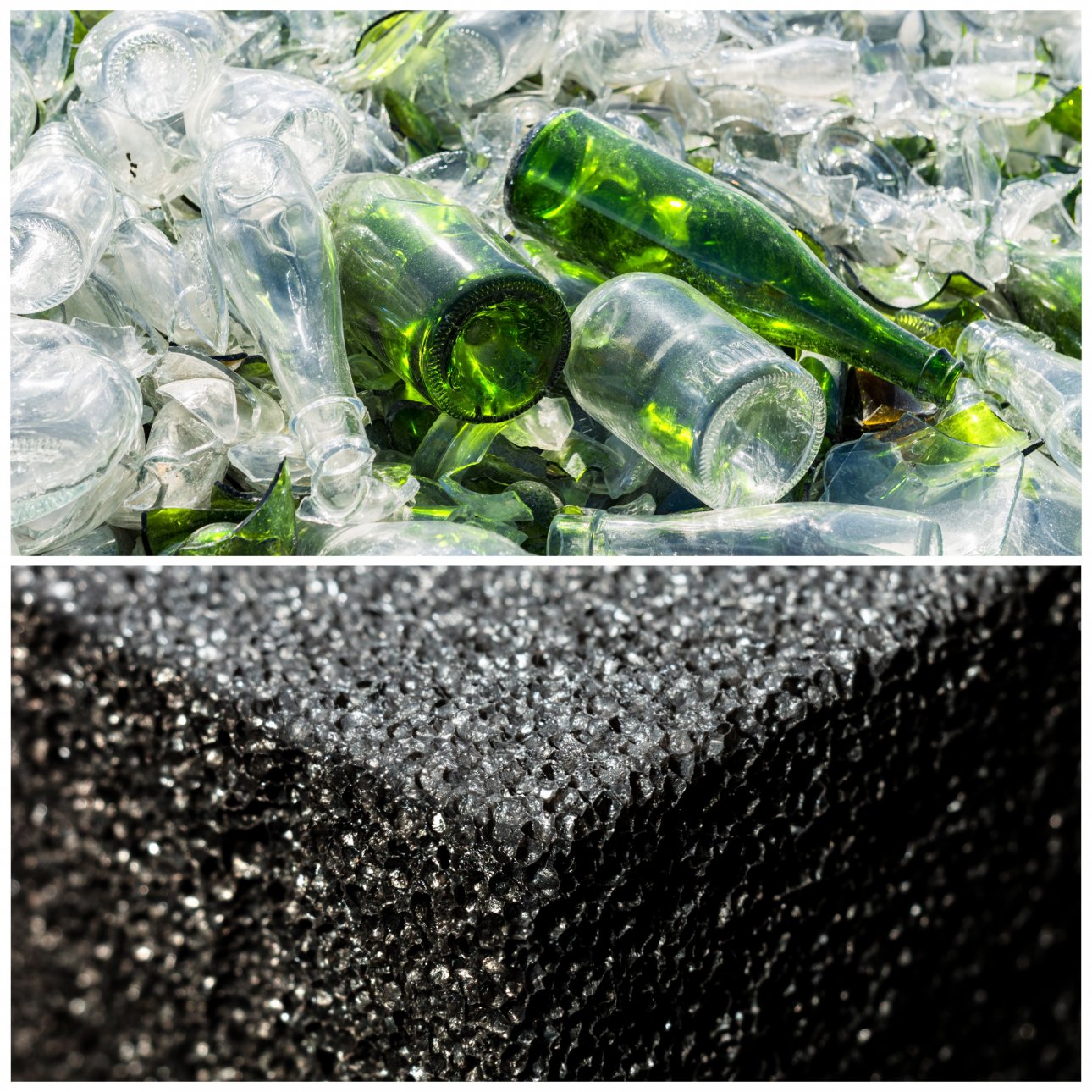

GEOMATERIALS Panel is made from ordinary packaging glass and window glass used in everyday life. GEOMATERIALS Panel thus closes a gap in the recycling cycle and conserves natural resources.
The Manufacturing Process of GEOMATERIALS Panel
After cleaning and drying, the glass is crushed and mixed with foam additives. We use pure carbon – soot – as a foaming agent. The powder obtained from the glass and soot is then poured into molds and sent to the foaming oven. At a temperature of 1000° C, foam is formed, which is very similar in appearance to baking bread.
After the foaming oven, the hot blocks are removed from the molds and placed in the cooling oven, where the blocks are slowly cooled.

Applications and installation of GEOMATERIALS Panel
Possibilities for delivery
packed on pallets
1 Panel = length x width = 600x450mm
-
thickness 40mm
- R* [m²K/W] 0,77
- 80 pieces per pallet
- surface 21,60 m²
-
thickness 50mm
- R* [m²K/W] 0,96
- 64 pieces per pallet
- surface 17,28 m²
-
thickness 60mm
- R* [m²K/W] 1,1
- 56 pieces per pallet
- surface 15,12 m²
-
thickness 80mm
- R* [m²K/W] 1,45
- 40 pieces per pallet
- surface 10,80 m²
-
thickness 100mm
- R* [m²K/W] 1,85
- 32 pieces per pallet
- surface 8,64 m²
-
thickness 120mm
- R* [m²K/W] 2,2
- 28 pieces per pallet
- surface 7,56 m²
-
thickness 140mm
- R* [m²K/W] 2,59
- 24 pieces per pallet
- surface 6,48 m²
